Every plant has at least one of them: a machine that still earns its keep, held hostage by a single part nobody makes anymore. The original supplier has closed, merged, or simply moved on. The part isn't in any catalogue. The drawing — if it ever left the factory — is long lost. And the day that part finally fails, a perfectly good machine stops paying for itself.
It doesn't have to end there. Reverse engineering takes the part you have and turns it back into the thing you've lost: a complete, dimensioned, manufacturable model. From that model the part can be re-made — once, or every time you need it again. This isn't specific to one industry or one brand of machine. A worn cam from a packaging line, a discontinued bracket on a printing press, a bearing housing from a decades-old textile loom — the process is the same.
A discontinued part is a problem on paper. The machine in front of you is still real — and so is the part in your hand.
Why parts go obsolete (and why the machine usually shouldn't)
Industrial machines are built to run for decades. The control electronics, the consumables, and the supply chain around them are not. Parts fall out of supply for ordinary reasons:
- The maker is gone. The OEM shut down, was acquired, or discontinued the model and stopped holding spares.
- The volume disappeared. Tooling a low-demand legacy part is no longer worth it to the original supplier — but it's still worth it to you.
- The documentation was never yours. Many machines were sold without manufacturing drawings, so there's nothing to hand a workshop.
- The part evolved. A "compatible" replacement exists, but it has a slightly different fit and quietly wears out its neighbours.
None of those are reasons to scrap a machine that still does its job. They're reasons to recreate the part properly — to a real drawing, in the right material, to a measured fit.
From sample to drawing: how reverse engineering actually works
The goal is not to "copy" a worn part — a worn part is already out of spec. The goal is to recover the part's intended geometry and rebuild it as a clean, parametric model you can manufacture from with confidence.
1. Capture the geometry
We measure the sample — calipers, micrometers, height gauges, and where the geometry is complex, 3D scanning. Worn or damaged faces are cross-checked against unworn datums so the model reflects the part as designed, not as eroded.
2. Rebuild it in CAD
The measurements become a parametric model on genuine licensed SolidWorks and AutoCAD — the same tools our team uses to design the machines we build. Because the model is parametric, a feature can be adjusted later without redrawing the whole part.
3. Produce a manufacturable drawing
A model isn't a part. We produce a full drawing set: dimensions, tolerances, surface finishes, material callouts, and the critical fits that decide whether the part actually works in the assembly. This is the document a machine shop — ours or yours — can build from without guessing.
4. First article, then production
We make a first part and check it back against the sample and the mating components. Once the fit is confirmed, the same drawing produces repeatable parts on demand — so the next failure is a phone call, not a crisis.
Getting the material and the fit right
A part that looks identical but is made from the wrong material — or to the wrong tolerance — fails faster than the one it replaced, and sometimes damages the parts around it. Reverse engineering done properly accounts for:
- Material and treatment — matching (or deliberately upgrading) the alloy, hardness, and surface treatment to the duty the part actually sees.
- Tolerances and fits — the clearances and interference fits that govern how the part runs against its neighbours.
- Wear surfaces — identifying which faces are sacrificial and which are datums, so the remanufactured part wears the way the original was meant to.
- Sensible improvements — where a known weak point caused the original to fail, it can be quietly engineered out.
A part in hand, not just a file

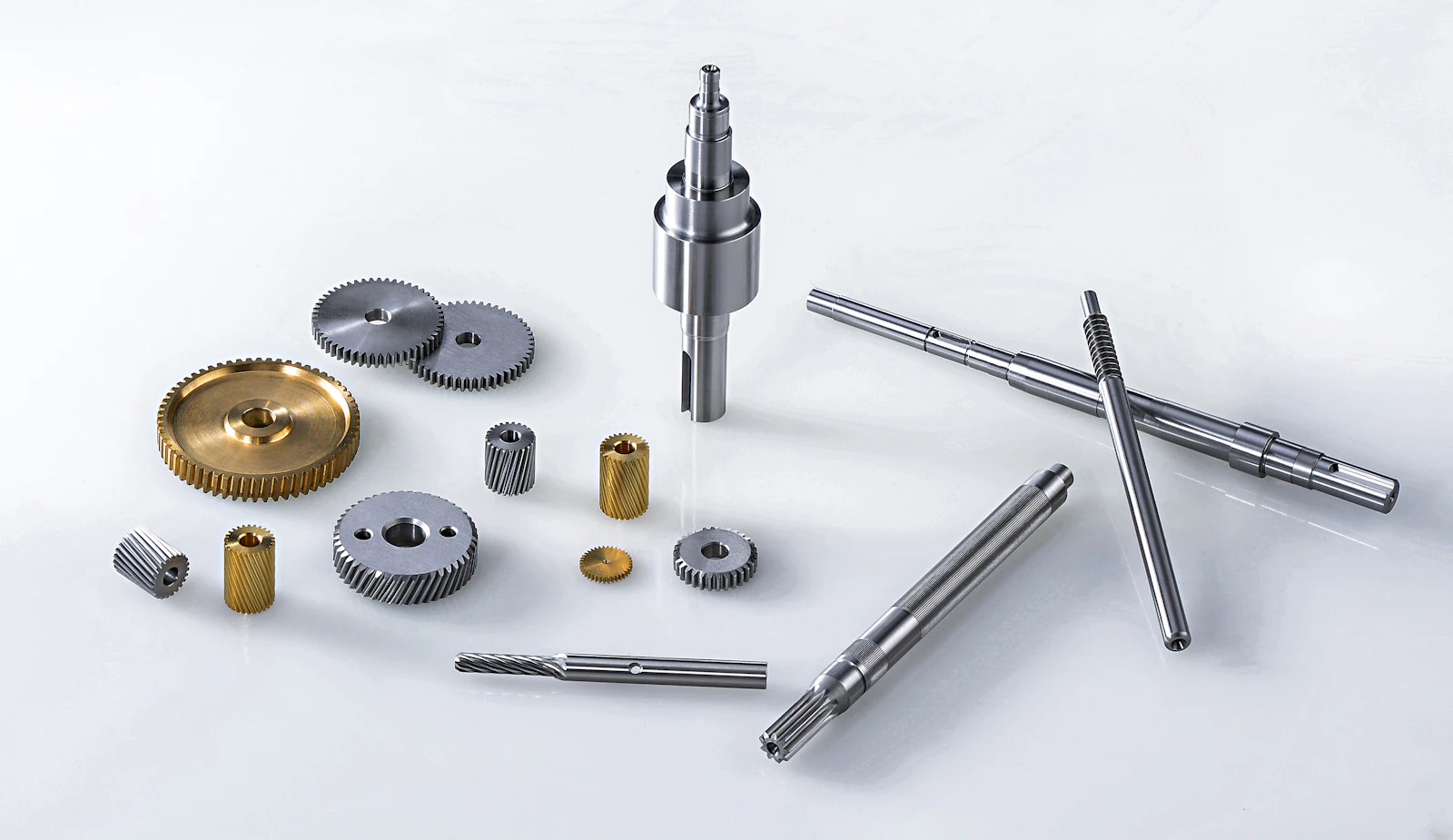

Plenty of services will hand you a scan or a model and wish you luck. We don't stop at the file. MOI Engineering is a working machine-building shop — we design and manufacture precision machines in-house — so reverse engineering can run all the way through to a finished, inspected part.
That's also why this is good job-work for any manufacturer who needs engineering capacity they don't keep in-house. You don't need a CAD department or a tool room to keep a legacy machine alive — you need someone who has both, and who treats a single obsolete part with the same rigour as a full machine build.
What to send us
Starting is simple. Any one of these is enough to begin:
- The physical part — even worn, broken, or in pieces.
- A clear photo with a ruler or caliper for scale, if you can't ship the part yet.
- Any old drawings, manuals, or part numbers you still have.
- The machine it belongs to, and what the part does in the assembly.
From there we'll tell you what's involved, what it costs, and how quickly we can put a remanufactured part back in your machine. One part or a whole register of obsolete spares — the process is the same, and it keeps good machines earning.
